Butterknife source analysis

本文分析的源码为8.4.0。

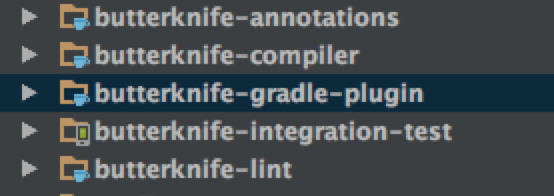

项目结构

butterknife包含ButterKnife核心的Api，如ButterKnife。butterknife-annotations包含了所有定义的注解。butterknife-compiler包含了生成模板代码的代码。这里我们重点研究ButterKnife是如何生成模板代码以及在我们的类中是如何调用的。

核心类

ViewBinding是一个接口，有两个直接的子类FieldViewBinding和MethodViewBinding。

FieldViewBinding封装了使用@BindView注解的Field的信息。

1
2
3
private final String name;//字段名
private final TypeName type;//类型
private final boolean required;//是否必须

MethodViewBinding封装了使用@OnClick等注解注解的方法的信息。

1
2
3
private final String name;//方法名
private final List<Parameter> parameters;//方法参数
private final boolean required;//是否必须

注解@ListenerClass代表一个监听器的类，作用在如@OnClick等事件监听的注解上。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
@Retention(RUNTIME) @Target(ANNOTATION_TYPE)
public @interface ListenerClass {
  String targetType();//目标类型
  /** Name of the setter method on the {@linkplain #targetType() target type} for the listener. */
  String setter();//将该类设置给目标类型的方法
  /**
   * Name of the method on the {@linkplain #targetType() target type} to remove the listener. If
   * empty {@link #setter()} will be used by default.
   */
  String remover() default "";
  /** Fully-qualified class name of the listener type. */
  String type();

  /** Enum which declares the listener callback methods. Mutually exclusive to {@link #method()}. */
  Class<? extends Enum<?>> callbacks() default NONE.class;

  /**
   * Method data for single-method listener callbacks. Mutually exclusive with {@link #callbacks()}
   * and an error to specify more than one value.
   */
  ListenerMethod[] method() default { };

  /** Default value for {@link #callbacks()}. */
  enum NONE { }
}
@ListenerMethod注解代表一个监听类的方法，因为类里面可能有多个方法，所以是一个数组。
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
@Retention(RUNTIME) @Target(FIELD)
public @interface ListenerMethod {
  /** Name of the listener method for which this annotation applies. */
  String name();

  /** List of method parameters. If the type is not a primitive it must be fully-qualified. */
  String[] parameters() default { };

  /** Primitive or fully-qualified return type of the listener method. May also be {@code void}. */
  String returnType() default "void";

  /** If {@link #returnType()} is not {@code void} this value is returned when no binding exists. */
  String defaultReturn() default "null";
}
@OnClick
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
@Target(METHOD)
@Retention(CLASS)
@ListenerClass(
    targetType = "android.view.View",
    setter = "setOnClickListener",
    type = "butterknife.internal.DebouncingOnClickListener",
    method = @ListenerMethod(
        name = "doClick",
        parameters = "android.view.View"
    )
)
public @interface OnClick {
  /** View IDs to which the method will be bound. */
  @IdRes int[] value() default { View.NO_ID };
}

ViewBindings封装了一个View的所有ViewBinding。例如在SimpleActivity中有如下代码

1
2
3
4
5
6
7
8
9
@BindView(R.id.hello) Button hello;//对应封装成一个FieldViewBinding
@OnClick(R.id.hello) void sayHello() {
    Toast.makeText(this, "Hello, views!", LENGTH_SHORT).show();
    ButterKnife.apply(headerViews, ALPHA_FADE);//对应封装成一个MethodViewBinding
}
@OnLongClick(R.id.hello) boolean sayGetOffMe() {
    Toast.makeText(this, "Let go of me!", LENGTH_SHORT).show();//对应封装成一个MethodViewBinding
    return true;
}
这里R.id.hello这个view对应的ViewBindings包含一个FieldViewBinding和两个MethodViewBinding。
1
2
3
4
5
6
7
final class ViewBindings {
  private final Id id; //View对应的id
  private final Map<ListenerClass, Map<ListenerMethod, Set<MethodViewBinding>>> methodBindings =
      new LinkedHashMap<>();//Map用于存储多个MethodViewBinding
  private FieldViewBinding fieldBinding;
  ...
}
这里使用 Map<ListenerMethod, Set来存储MethodViewBinding。因为同一个ListenerMethod可能对应多个MethodViewBinding。比如下面代码就是一个ListenerMethod就对应了两个MethodViewBinding。
1
2
3
4
5
6
7
8
  @OnClick({R.id.hello})void sayHello() {
    Toast.makeText(this, "Hello, views!", LENGTH_SHORT).show();
    ButterKnife.apply(headerViews, ALPHA_FADE);
  }
  @OnClick({R.id.hello})void sayHello2() {
    Toast.makeText(this, "Hello, views!", LENGTH_SHORT).show();
    ButterKnife.apply(headerViews, ALPHA_FADE);
  }
BindingSet可以看做是一个类里面所有所有Binding信息。同时还负责生成代码的逻辑。
1
2
3
4
5
6
7
8
9
final class BindingSet {
    private final TypeName targetTypeName;//
    private final ClassName bindingClassName;//生成辅助类的类名
    private final boolean isFinal;//是否是final类型
    private final List<ViewBindings> viewBindings;//用于存储ViewBinding
    private final List<FieldCollectionViewBinding> collectionBindings;
    private final List<ResourceBinding> resourceBindings;
    private final BindingSet parentBinding;//父parentBinding
}

ResourceBinding是一个接口，有两个实现类FieldResourceBinding和FieldDrawableBinding。

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
//例如  @BindColor(android.R.color.black) @ColorInt int blackColor;
//将会生成代码    target.blackColor = ContextCompat.getColor(context, android.R.color.black);
//ResourceMethod方法指的是生成代码的对象
final class FieldResourceBinding implements ResourceBinding {
    enum Type {
        BITMAP(new ResourceMethod(BindingSet.BITMAP_FACTORY, "decodeResource", true, 1)),
        BOOL("getBoolean"),
        COLOR(new ResourceMethod(BindingSet.CONTEXT_COMPAT, "getColor", false, 1),
                new ResourceMethod(null, "getColor", false, 23)),
        COLOR_STATE_LIST(new ResourceMethod(BindingSet.CONTEXT_COMPAT, "getColorStateList", false, 1),
                new ResourceMethod(null, "getColorStateList", false, 23)),
        DIMEN_AS_INT("getDimensionPixelSize"),
        DIMEN_AS_FLOAT("getDimension"),
        FLOAT(new ResourceMethod(BindingSet.UTILS, "getFloat", false, 1)),
        INT("getInteger"),
        INT_ARRAY("getIntArray"),
        STRING("getString"),
        STRING_ARRAY("getStringArray"),
        TEXT_ARRAY("getTextArray"),
        TYPED_ARRAY("obtainTypedArray");

        private final List<ResourceMethod> methods;

        Type(ResourceMethod... methods) {
            List<ResourceMethod> methodList = new ArrayList<>(methods.length);
            Collections.addAll(methodList, methods);
            Collections.sort(methodList);
            Collections.reverse(methodList);
            this.methods = unmodifiableList(methodList);
        }

        Type(String methodName) {
            methods = singletonList(new ResourceMethod(null, methodName, true, 1));
        }

        ResourceMethod methodForSdk(int sdk) {
            for (ResourceMethod method : methods) {
                if (method.sdk <= sdk) {
                    return method;
                }
            }
            throw new AssertionError();
        }
    }
    //资源方法
    static final class ResourceMethod implements Comparable<ResourceMethod> {
        final ClassName typeName;//类名
        final String name;//方法名
        final boolean requiresResources;
        final int sdk;//sdk版本号 因为sdk版本号不一样，调用的方法可能不一样。

        ResourceMethod(ClassName typeName, String name, boolean requiresResources, int sdk) {
            this.typeName = typeName;
            this.name = name;
            this.requiresResources = requiresResources;
            this.sdk = sdk;
        }

        @Override
        public int compareTo(ResourceMethod other) {
            return Integer.compare(sdk, other.sdk);//按照sdk排序
        }
    }

    //构造函数
    private final Id id;
    private final String name;
    private final Type type;

    FieldResourceBinding(Id id, String name, Type type) {
        this.id = id;
        this.name = name;
        this.type = type;
    }

    @Override
    public Id id() {
        return id;
    }

    @Override
    public boolean requiresResources(int sdk) {
        return type.methodForSdk(sdk).requiresResources;
    }

    @Override
    public CodeBlock render(int sdk) {
        ResourceMethod method = type.methodForSdk(sdk);
        if (method.typeName == null) {
            if (method.requiresResources) {
                return CodeBlock.of("target.$L = res.$L($L)", name, method.name, id.code);
            }
            return CodeBlock.of("target.$L = context.$L($L)", name, method.name, id.code);
        }
        if (method.requiresResources) {
            return CodeBlock.of("target.$L = $T.$L(res, $L)", name, method.typeName, method.name,
                    id.code);
        }
        return CodeBlock.of("target.$L = $T.$L(context, $L)", name, method.typeName, method.name,
                id.code);
    }
}

解析注解

知道各个类的作用之后，下一步工作就是了解如何解析这些标注了注解的字段和方法的信息，并封装成类。 ButterKnife解析这些信息的类为ButterKnifeProcessor，解析的工作由findAndParseTargets方法完成。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
private Map<TypeElement, BindingSet> findAndParseTargets(RoundEnvironment env) {   //使用Map存储BindingSet.Builder避免同一个类重复创建BindingSet.Builder
    Map<TypeElement, BindingSet.Builder> builderMap = new LinkedHashMap<>();//
    Set<TypeElement> erasedTargetNames = new LinkedHashSet<>();//
    scanForRClasses(env);
    // Process each @BindArray element.
    //获取注解@BindArray的Element
    for (Element element : env.getElementsAnnotatedWith(BindArray.class)) {
      if (!SuperficialValidation.validateElement(element)) continue;
      try {
        parseResourceArray(element, builderMap, erasedTargetNames);
      } catch (Exception e) {
        logParsingError(element, BindArray.class, e);
      }
    }
    ...
}
findAndParseTargets获取不同注解对应的Element，然后调用对应的parse方法来解析。

解析@BindView

parseBindView解析@BindView注解的Element。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
private void parseBindView(Element element, Map<TypeElement, BindingSet.Builder> builderMap,
  Set<TypeElement> erasedTargetNames) {
    //验证注解是否使用正确
    boolean hasError = isInaccessibleViaGeneratedCode(BindView.class, "fields", element)
        || isBindingInWrongPackage(BindView.class, element);

    TypeMirror elementType = element.asType();
    TypeElement enclosingElement = (TypeElement) element.getEnclosingElement();
    //例如当@BindView T view; 这时候就是一个TypeKind.TYPEVAR类型
    if (elementType.getKind() == TypeKind.TYPEVAR) {//泛型类型
      TypeVariable typeVariable = (TypeVariable) elementType;
      elementType = typeVariable.getUpperBound();//获取上边界
    }
    if (!isSubtypeOfType(elementType, VIEW_TYPE) && !isInterface(elementType)) {//判断field的类型
      if (elementType.getKind() == TypeKind.ERROR) {
        note(element, "@%s field with unresolved type (%s) "
                + "must elsewhere be generated as a View or interface. (%s.%s)",
            BindView.class.getSimpleName(), elementType, enclosingElement.getQualifiedName(),
            element.getSimpleName());
      } else {
        error(element, "@%s fields must extend from View or be an interface. (%s.%s)",
            BindView.class.getSimpleName(), enclosingElement.getQualifiedName(),
            element.getSimpleName());
        hasError = true;
      }
    }
    if (hasError) {
      return;
    }
    int id = element.getAnnotation(BindView.class).value();//获取id
    BindingSet.Builder builder = builderMap.get(enclosingElement);//创建  BindingSet.Builder
    if (builder != null) {
      ViewBindings viewBindings = builder.getViewBinding(getId(id));
      //当FieldBinding已经存在说明已经绑定过了。重复绑定将抛异常
      if (viewBindings != null && viewBindings.getFieldBinding() != null) {
        FieldViewBinding existingBinding = viewBindings.getFieldBinding();

        error(element, "Attempt to use @%s for an already bound ID %d on '%s'. (%s.%s)",
            BindView.class.getSimpleName(), id, existingBinding.getName(),
            enclosingElement.getQualifiedName(), element.getSimpleName());
        return;
      }
    } else {
      builder = getOrCreateBindingBuilder(builderMap, enclosingElement);
    }
    String name = element.getSimpleName().toString();//获取FieldName
    TypeName type = TypeName.get(elementType);//获取Field的Type
    boolean required = isFieldRequired(element);//是否必须
    builder.addField(getId(id), new FieldViewBinding(name, type, required));
    // Add the type-erased version to the valid binding targets set.
    erasedTargetNames.add(enclosingElement);
}
isInaccessibleViaGeneratedCode方法用于通过修饰符来判断字段是否能够被生成的代码访问。由于ButterKnife的原理是通过辅助类来完成findViewById的操作，所以必须引用原来的的字段，因此不能设置为private
1
target.title = Utils.findRequiredViewAsType(source, R.id.title, "field 'title'", TextView.class);
isInaccessibleViaGeneratedCode方法的源码
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
private boolean isInaccessibleViaGeneratedCode(Class<? extends Annotation> annotationClass,
  String targetThing, Element element) {
    boolean hasError = false;
    TypeElement enclosingElement = (TypeElement) element.getEnclosingElement();
    // Verify method modifiers.
    Set<Modifier> modifiers = element.getModifiers();
    if (modifiers.contains(PRIVATE) || modifiers.contains(STATIC)) {
      error(element, "@%s %s must not be private or static. (%s.%s)",
          annotationClass.getSimpleName(), targetThing, enclosingElement.getQualifiedName(),
          element.getSimpleName());
      hasError = true;
    }
    // Verify containing type.
    if (enclosingElement.getKind() != CLASS) {
      error(enclosingElement, "@%s %s may only be contained in classes. (%s.%s)",
          annotationClass.getSimpleName(), targetThing, enclosingElement.getQualifiedName(),
          element.getSimpleName());
      hasError = true;
    }
    // Verify containing class visibility is not private.
    if (enclosingElement.getModifiers().contains(PRIVATE)) {
      error(enclosingElement, "@%s %s may not be contained in private classes. (%s.%s)",
          annotationClass.getSimpleName(), targetThing, enclosingElement.getQualifiedName(),
          element.getSimpleName());
      hasError = true;
    }
    return hasError;
}

解析方法注解

1
2
3
for (Class<? extends Annotation> listener : LISTENERS) {
  findAndParseListener(env, listener, builderMap, erasedTargetNames);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
  private void findAndParseListener(RoundEnvironment env,
      Class<? extends Annotation> annotationClass,
      Map<TypeElement, BindingSet.Builder> builderMap, Set<TypeElement> erasedTargetNames) {
    for (Element element : env.getElementsAnnotatedWith(annotationClass)) {
      if (!SuperficialValidation.validateElement(element)) continue;
      try {
        parseListenerAnnotation(annotationClass, element, builderMap, erasedTargetNames);
      } catch (Exception e) {
        StringWriter stackTrace = new StringWriter();
        e.printStackTrace(new PrintWriter(stackTrace));

        error(element, "Unable to generate view binder for @%s.\n\n%s",
            annotationClass.getSimpleName(), stackTrace.toString());
      }
    }
  }

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
  private void parseListenerAnnotation(Class<? extends Annotation> annotationClass, Element element,
      Map<TypeElement, BindingSet.Builder> builderMap, Set<TypeElement> erasedTargetNames)
      throws Exception {
    // This should be guarded by the annotation's @Target but it's worth a check for safe casting.
    if (!(element instanceof ExecutableElement) || element.getKind() != METHOD) {
      throw new IllegalStateException(
          String.format("@%s annotation must be on a method.", annotationClass.getSimpleName()));
    }

    ExecutableElement executableElement = (ExecutableElement) element;
    TypeElement enclosingElement = (TypeElement) element.getEnclosingElement();
    // Assemble information on the method.
    Annotation annotation = element.getAnnotation(annotationClass);
    Method annotationValue = annotationClass.getDeclaredMethod("value");
    if (annotationValue.getReturnType() != int[].class) {
      throw new IllegalStateException(
          String.format("@%s annotation value() type not int[].", annotationClass));
    }
    int[] ids = (int[]) annotationValue.invoke(annotation);//通过反射获取值
    String name = executableElement.getSimpleName().toString();//方法名
    boolean required = isListenerRequired(executableElement);
    // Verify that the method and its containing class are accessible via generated code.
    boolean hasError = isInaccessibleViaGeneratedCode(annotationClass, "methods", element);
    hasError |= isBindingInWrongPackage(annotationClass, element);
    //发现重复的id
    Integer duplicateId = findDuplicate(ids);
    if (duplicateId != null) {
      error(element, "@%s annotation for method contains duplicate ID %d. (%s.%s)",
          annotationClass.getSimpleName(), duplicateId, enclosingElement.getQualifiedName(),
          element.getSimpleName());
      hasError = true;
    }

    ListenerClass listener = annotationClass.getAnnotation(ListenerClass.class);
    if (listener == null) {
      throw new IllegalStateException(
          String.format("No @%s defined on @%s.", ListenerClass.class.getSimpleName(),
              annotationClass.getSimpleName()));
    }
    for (int id : ids) {
      if (id == NO_ID.value) {
        if (ids.length == 1) {
          if (!required) {
            error(element, "ID-free binding must not be annotated with @Optional. (%s.%s)",
                enclosingElement.getQualifiedName(), element.getSimpleName());
            hasError = true;
          }
        } else {
          error(element, "@%s annotation contains invalid ID %d. (%s.%s)",
              annotationClass.getSimpleName(), id, enclosingElement.getQualifiedName(),
              element.getSimpleName());
          hasError = true;
        }
      }
    }

    ListenerMethod method;
    ListenerMethod[] methods = listener.method();
    if (methods.length > 1) {
      throw new IllegalStateException(String.format("Multiple listener methods specified on @%s.",
          annotationClass.getSimpleName()));
    } else if (methods.length == 1) {
      if (listener.callbacks() != ListenerClass.NONE.class) {
        throw new IllegalStateException(
            String.format("Both method() and callback() defined on @%s.",
                annotationClass.getSimpleName()));
      }
      method = methods[0];
    } else {
      Method annotationCallback = annotationClass.getDeclaredMethod("callback");
      Enum<?> callback = (Enum<?>) annotationCallback.invoke(annotation);
      Field callbackField = callback.getDeclaringClass().getField(callback.name());
      method = callbackField.getAnnotation(ListenerMethod.class);
      if (method == null) {
        throw new IllegalStateException(
            String.format("No @%s defined on @%s's %s.%s.", ListenerMethod.class.getSimpleName(),
                annotationClass.getSimpleName(), callback.getDeclaringClass().getSimpleName(),
                callback.name()));
      }
    }

    // Verify that the method has equal to or less than the number of parameters as the listener.
    List<? extends VariableElement> methodParameters = executableElement.getParameters();
    if (methodParameters.size() > method.parameters().length) {
      error(element, "@%s methods can have at most %s parameter(s). (%s.%s)",
          annotationClass.getSimpleName(), method.parameters().length,
          enclosingElement.getQualifiedName(), element.getSimpleName());
      hasError = true;
    }
    // Verify method return type matches the listener.
    TypeMirror returnType = executableElement.getReturnType();
    if (returnType instanceof TypeVariable) {
      TypeVariable typeVariable = (TypeVariable) returnType;
      returnType = typeVariable.getUpperBound();
    }
    if (!returnType.toString().equals(method.returnType())) {
      error(element, "@%s methods must have a '%s' return type. (%s.%s)",
          annotationClass.getSimpleName(), method.returnType(),
          enclosingElement.getQualifiedName(), element.getSimpleName());
      hasError = true;
    }
    if (hasError) {
      return;
    }
    Parameter[] parameters = Parameter.NONE;
    if (!methodParameters.isEmpty()) {
      parameters = new Parameter[methodParameters.size()];
      BitSet methodParameterUsed = new BitSet(methodParameters.size());
      String[] parameterTypes = method.parameters();
      for (int i = 0; i < methodParameters.size(); i++) {
        VariableElement methodParameter = methodParameters.get(i);
        TypeMirror methodParameterType = methodParameter.asType();
        if (methodParameterType instanceof TypeVariable) {
          TypeVariable typeVariable = (TypeVariable) methodParameterType;
          methodParameterType = typeVariable.getUpperBound();
        }

        for (int j = 0; j < parameterTypes.length; j++) {
          if (methodParameterUsed.get(j)) {
            continue;
          }
          if (isSubtypeOfType(methodParameterType, parameterTypes[j])
              || isInterface(methodParameterType)) {
            parameters[i] = new Parameter(j, TypeName.get(methodParameterType));
            methodParameterUsed.set(j);
            break;
          }
        }
        if (parameters[i] == null) {
          StringBuilder builder = new StringBuilder();
          builder.append("Unable to match @")
              .append(annotationClass.getSimpleName())
              .append(" method arguments. (")
              .append(enclosingElement.getQualifiedName())
              .append('.')
              .append(element.getSimpleName())
              .append(')');
          for (int j = 0; j < parameters.length; j++) {
            Parameter parameter = parameters[j];
            builder.append("\n\n  Parameter #")
                .append(j + 1)
                .append(": ")
                .append(methodParameters.get(j).asType().toString())
                .append("\n    ");
            if (parameter == null) {
              builder.append("did not match any listener parameters");
            } else {
              builder.append("matched listener parameter #")
                  .append(parameter.getListenerPosition() + 1)
                  .append(": ")
                  .append(parameter.getType());
            }
          }
          builder.append("\n\nMethods may have up to ")
              .append(method.parameters().length)
              .append(" parameter(s):\n");
          for (String parameterType : method.parameters()) {
            builder.append("\n  ").append(parameterType);
          }
          builder.append(
              "\n\nThese may be listed in any order but will be searched for from top to bottom.");
          error(executableElement, builder.toString());
          return;
        }
      }
    }

    MethodViewBinding binding = new MethodViewBinding(name, Arrays.asList(parameters), required);
    BindingSet.Builder builder = getOrCreateBindingBuilder(builderMap, enclosingElement);
    for (int id : ids) {
      if (!builder.addMethod(getId(id), listener, method, binding)) {
        error(element, "Multiple listener methods with return value specified for ID %d. (%s.%s)",
            id, enclosingElement.getQualifiedName(), element.getSimpleName());
        return;
      }
    }
    // Add the type-erased version to the valid binding targets set.
    erasedTargetNames.add(enclosingElement);
  }

解析资源绑定

解析资源的代码基本都差不多。这里只给出parseResourceString的源码和注释。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
  private void parseResourceString(Element element,
      Map<TypeElement, BindingSet.Builder> builderMap, Set<TypeElement> erasedTargetNames) {
    boolean hasError = false;
    TypeElement enclosingElement = (TypeElement) element.getEnclosingElement();

    // Verify that the target type is String.
    if (!STRING_TYPE.equals(element.asType().toString())) {
      error(element, "@%s field type must be 'String'. (%s.%s)",
          BindString.class.getSimpleName(), enclosingElement.getQualifiedName(),
          element.getSimpleName());
      hasError = true;
    }

    // Verify common generated code restrictions.
    hasError |= isInaccessibleViaGeneratedCode(BindString.class, "fields", element);
    hasError |= isBindingInWrongPackage(BindString.class, element);

    if (hasError) {
      return;
    }

    // Assemble information on the field.
    String name = element.getSimpleName().toString();
    int id = element.getAnnotation(BindString.class).value();

    BindingSet.Builder builder = getOrCreateBindingBuilder(builderMap, enclosingElement);
    builder.addResource(
        new FieldResourceBinding(getId(id), name, FieldResourceBinding.Type.STRING));

    erasedTargetNames.add(enclosingElement);
  }
设置parentBinding

在findAndParseTargets最后几行代码的作用是为解析出来的BindingSet.Builder设置parentBinding

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
 Deque<Map.Entry<TypeElement, BindingSet.Builder>> entries =
        new ArrayDeque<>(builderMap.entrySet());
    Map<TypeElement, BindingSet> bindingMap = new LinkedHashMap<>();
    while (!entries.isEmpty()) {
      Map.Entry<TypeElement, BindingSet.Builder> entry = entries.removeFirst();
      TypeElement type = entry.getKey();
      BindingSet.Builder builder = entry.getValue();
      TypeElement parentType = findParentType(type, erasedTargetNames);
      if (parentType == null) {//没有parentBinding，不是某各类的子类
        bindingMap.put(type, builder.build());
      } else {
        BindingSet parentBinding = bindingMap.get(parentType);
        if (parentBinding != null) {
          builder.setParent(parentBinding);
          bindingMap.put(type, builder.build());
        } else {
          // Has a superclass binding but we haven't built it yet. Re-enqueue for later.
          entries.addLast(entry);
        }
      }
    }

生成代码

生成代码主要由BindingSet的brewJava方法完成。

1
2
3
4
5
   JavaFile brewJava(int sdk) {
        return JavaFile.builder(bindingClassName.packageName(), createType(sdk))
                .addFileComment("Generated code from Butter Knife. Do not modify!")//添加注释
                .build();
    }

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
private TypeSpec createType(int sdk) {
        TypeSpec.Builder result = TypeSpec.classBuilder(bindingClassName.simpleName())//类名
                .addModifiers(PUBLIC);//修饰符
        if (isFinal) {
            result.addModifiers(FINAL);
        }

        if (parentBinding != null) {
            result.superclass(parentBinding.bindingClassName);//添加父类
        } else {
            result.addSuperinterface(UNBINDER);//添加接口UnBinder
        }

        if (hasTargetField()) {
            result.addField(targetTypeName, "target", PRIVATE);//添加字段target
        }
        //
        if (!constructorNeedsView()) {
            // Add a delegating constructor with a target type + view signature for reflective use.
            result.addMethod(createBindingViewDelegateConstructor(targetTypeName));
        }
        result.addMethod(createBindingConstructor(targetTypeName, sdk));

        if (hasViewBindings() || parentBinding == null) {
            result.addMethod(createBindingUnbindMethod(result, targetTypeName));
        }

        return result.build();
    }
createBindingConstructor创建构造函数
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
private MethodSpec createBindingConstructor(TypeName targetType, int sdk) {
    MethodSpec.Builder constructor = MethodSpec.constructorBuilder()
            .addAnnotation(UI_THREAD)//添加注解
            .addModifiers(PUBLIC);//添加修饰符
    if (hasMethodBindings()) {//如果没有MethodBinding就不用声明成final类型
        constructor.addParameter(targetType, "target", FINAL);
    } else {
        constructor.addParameter(targetType, "target");
    }
    if (constructorNeedsView()) {//当构造函数需要View
        constructor.addParameter(VIEW, "source");
    } else {
        constructor.addParameter(CONTEXT, "context");
    }

    if (hasUnqualifiedResourceBindings()) {//添加SuppressWarnings注解
        // Aapt can change IDs out from underneath us, just suppress since all will work at runtime.
        constructor.addAnnotation(AnnotationSpec.builder(SuppressWarnings.class)
                .addMember("value", "$S", "ResourceType")
                .build());
    }
    if (parentBinding != null) {//添加父类构造方法的调用
        if (parentBinding.constructorNeedsView()) {
            constructor.addStatement("super(target, source)");
        } else if (constructorNeedsView()) {
            constructor.addStatement("super(target, source.getContext())");
        } else {
            constructor.addStatement("super(target, context)");
        }
        constructor.addCode("\n");
    }
    if (hasTargetField()) {//
        constructor.addStatement("this.target = target");
        constructor.addCode("\n");
    }

    if (hasViewBindings()) {
        if (hasViewLocal()) {
            // Local variable in which all views will be temporarily stored.
            constructor.addStatement("$T view", VIEW);
        }
        for (ViewBindings bindings : viewBindings) {
            addViewBindings(constructor, bindings);
        }
        for (FieldCollectionViewBinding binding : collectionBindings) {
            constructor.addStatement("$L", binding.render());
        }
        if (!resourceBindings.isEmpty()) {
            constructor.addCode("\n");
        }
    }
    //
    if (!resourceBindings.isEmpty()) {
        if (constructorNeedsView()) {
            constructor.addStatement("$T context = source.getContext()", CONTEXT);
        }
        if (hasResourceBindingsNeedingResource(sdk)) {
            constructor.addStatement("$T res = context.getResources()", RESOURCES);
        }
        for (ResourceBinding binding : resourceBindings) {
            constructor.addStatement("$L", binding.render(sdk));
        }
    }
    return constructor.build();
}
addViewBindings用于添加ViewBindings对象所对应的表达式。当只有FieldViewBinding时直接生成代码 target.title = Utils.findRequiredViewAsType(source, R.id.title, "field 'title'", TextView.class);。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
private void addViewBindings(MethodSpec.Builder result, ViewBindings bindings) {
    if (bindings.isSingleFieldBinding()) {//如果只有FieldBinding
        // Optimize the common case where there's a single binding directly to a field.
        FieldViewBinding fieldBinding = bindings.getFieldBinding();
        CodeBlock.Builder builder = CodeBlock.builder()
                .add("target.$L = ", fieldBinding.getName());
    //当type是View类型不需要强制转换
        boolean requiresCast = requiresCast(fieldBinding.getType());
        if (!requiresCast && !fieldBinding.isRequired()) {
            builder.add("source.findViewById($L)", bindings.getId().code);
        } else {
            builder.add("$T.find", UTILS);//Utils.findRequiredViewAsType(source,12345,
            builder.add(fieldBinding.isRequired() ? "RequiredView" : "OptionalView");
            if (requiresCast) {
                builder.add("AsType");
            }
            builder.add("(source, $L", bindings.getId().code);
            if (fieldBinding.isRequired() || requiresCast) {
                builder.add(", $S", asHumanDescription(singletonList(fieldBinding)));
            }
            if (requiresCast) {
                builder.add(", $T.class", fieldBinding.getRawType());
            }
            builder.add(")");
        }
        result.addStatement("$L", builder.build());
        return;
    }
  //如同时存在FieldViewBinding和MethodViewBinding
  //先生成    view = Utils.findRequiredView(source, R.id.hello, "field 'hello', method 'sayHello', method 'sayHello2', and method 'sayGetOffMe'");
//调用addFieldBindings方法生成    target.hello = Utils.castView(view, R.id.hello, "field 'hello'", Button.class);

    List<ViewBinding> requiredViewBindings = bindings.getRequiredBindings();
    if (requiredViewBindings.isEmpty()) {
        result.addStatement("view = source.findViewById($L)", bindings.getId().code);
    } else if (!bindings.isBoundToRoot()) {
        result.addStatement("view = $T.findRequiredView(source, $L, $S)", UTILS,
                bindings.getId().code, asHumanDescription(requiredViewBindings));
    }
    addFieldBindings(result, bindings);
    addMethodBindings(result, bindings);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
 private void addFieldBindings(MethodSpec.Builder result, ViewBindings bindings) {
    FieldViewBinding fieldBinding = bindings.getFieldBinding();
    if (fieldBinding != null) {
        if (requiresCast(fieldBinding.getType())) {
            result.addStatement("target.$L = $T.castView(view, $L, $S, $T.class)",
                    fieldBinding.getName(), UTILS, bindings.getId().code,
                    asHumanDescription(singletonList(fieldBinding)), fieldBinding.getRawType());
        } else {
            result.addStatement("target.$L = view", fieldBinding.getName());
        }
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
 private void addMethodBindings(MethodSpec.Builder result, ViewBindings bindings) {
    Map<ListenerClass, Map<ListenerMethod, Set<MethodViewBinding>>> classMethodBindings =
            bindings.getMethodBindings();
    if (classMethodBindings.isEmpty()) {
        return;
    }

    // We only need to emit the null check if there are zero required bindings.
    boolean needsNullChecked = bindings.getRequiredBindings().isEmpty();
    if (needsNullChecked) {
        result.beginControlFlow("if (view != null)");
    }

    // Add the view reference to the binding.
    String fieldName = "viewSource";
    String bindName = "source";
    if (!bindings.isBoundToRoot()) {
        fieldName = "view" + bindings.getId().value;
        bindName = "view";
    }
    result.addStatement("$L = $N", fieldName, bindName);

    for (Map.Entry<ListenerClass, Map<ListenerMethod, Set<MethodViewBinding>>> e
            : classMethodBindings.entrySet()) {
        ListenerClass listener = e.getKey();
        Map<ListenerMethod, Set<MethodViewBinding>> methodBindings = e.getValue();

        TypeSpec.Builder callback = TypeSpec.anonymousClassBuilder("")
                .superclass(ClassName.bestGuess(listener.type()));

        for (ListenerMethod method : getListenerMethods(listener)) {
            MethodSpec.Builder callbackMethod = MethodSpec.methodBuilder(method.name())
                    .addAnnotation(Override.class)
                    .addModifiers(PUBLIC)
                    .returns(bestGuess(method.returnType()));
            String[] parameterTypes = method.parameters();
            for (int i = 0, count = parameterTypes.length; i < count; i++) {
                callbackMethod.addParameter(bestGuess(parameterTypes[i]), "p" + i);
            }

            boolean hasReturnType = !"void".equals(method.returnType());
            CodeBlock.Builder builder = CodeBlock.builder();
            if (hasReturnType) {
                builder.add("return ");
            }

            if (methodBindings.containsKey(method)) {
                for (MethodViewBinding binding : methodBindings.get(method)) {
                    builder.add("target.$L(", binding.getName());
                    List<Parameter> parameters = binding.getParameters();
                    String[] listenerParameters = method.parameters();
                    for (int i = 0, count = parameters.size(); i < count; i++) {
                        if (i > 0) {
                            builder.add(", ");
                        }

                        Parameter parameter = parameters.get(i);
                        int listenerPosition = parameter.getListenerPosition();

                        if (parameter.requiresCast(listenerParameters[listenerPosition])) {
                            builder.add("$T.<$T>castParam(p$L, $S, $L, $S, $L)", UTILS, parameter.getType(),
                                    listenerPosition, method.name(), listenerPosition, binding.getName(), i);
                        } else {
                            builder.add("p$L", listenerPosition);
                        }
                    }
                    builder.add(");\n");
                }
            } else if (hasReturnType) {
                builder.add("$L;\n", method.defaultReturn());
            }
            callbackMethod.addCode(builder.build());
            callback.addMethod(callbackMethod.build());
        }

        boolean requiresRemoval = listener.remover().length() != 0;
        String listenerField = null;
        if (requiresRemoval) {
            TypeName listenerClassName = bestGuess(listener.type());
            listenerField = fieldName + ((ClassName) listenerClassName).simpleName();
            result.addStatement("$L = $L", listenerField, callback.build());
        }

        if (!VIEW_TYPE.equals(listener.targetType())) {
            result.addStatement("(($T) $N).$L($L)", bestGuess(listener.targetType()), bindName,
                    listener.setter(), requiresRemoval ? listenerField : callback.build());
        } else {
            result.addStatement("$N.$L($L)", bindName, listener.setter(),
                    requiresRemoval ? listenerField : callback.build());
        }
    }

    if (needsNullChecked) {
        result.endControlFlow();
    }
}

调用辅助方法

我们在类中通过调用ButterKnife的bind方法来调用辅助类的。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
@NonNull @UiThread
public static Unbinder bind(@NonNull Object target, @NonNull View source) {
    return createBinding(target, source);
}
private static Unbinder createBinding(@NonNull Object target, @NonNull View source) {
    Class<?> targetClass = target.getClass();
    if (debug) Log.d(TAG, "Looking up binding for " + targetClass.getName());
    Constructor<? extends Unbinder> constructor = findBindingConstructorForClass(targetClass);
    if (constructor == null) {
      return Unbinder.EMPTY;
    }
//noinspection TryWithIdenticalCatches Resolves to API 19+ only type.
    try {
      return constructor.newInstance(target, source);
    } catch (IllegalAccessException e) {
      throw new RuntimeException("Unable to invoke " + constructor, e);
    } catch (InstantiationException e) {
      throw new RuntimeException("Unable to invoke " + constructor, e);
    } catch (InvocationTargetException e) {
      Throwable cause = e.getCause();
      if (cause instanceof RuntimeException) {
        throw (RuntimeException) cause;
      }
      if (cause instanceof Error) {
        throw (Error) cause;
      }
      throw new RuntimeException("Unable to create binding instance.", cause);
    }
}
 @Nullable @CheckResult @UiThread
  private static Constructor<? extends Unbinder> findBindingConstructorForClass(Class<?> cls) {
    Constructor<? extends Unbinder> bindingCtor = BINDINGS.get(cls);
    if (bindingCtor != null) {
      if (debug) Log.d(TAG, "HIT: Cached in binding map.");
      return bindingCtor;
    }
    String clsName = cls.getName();
    if (clsName.startsWith("android.") || clsName.startsWith("java.")) {
      if (debug) Log.d(TAG, "MISS: Reached framework class. Abandoning search.");
      return null;
    }
    try {
      Class<?> bindingClass = Class.forName(clsName + "_ViewBinding");
      //noinspection unchecked
      bindingCtor = (Constructor<? extends Unbinder>) bindingClass.getConstructor(cls, View.class);
      if (debug) Log.d(TAG, "HIT: Loaded binding class and constructor.");
    } catch (ClassNotFoundException e) {
      if (debug) Log.d(TAG, "Not found. Trying superclass " + cls.getSuperclass().getName());
      bindingCtor = findBindingConstructorForClass(cls.getSuperclass());
    } catch (NoSuchMethodException e) {
      throw new RuntimeException("Unable to find binding constructor for " + clsName, e);
    }
    BINDINGS.put(cls, bindingCtor);
    return bindingCtor;
  }
